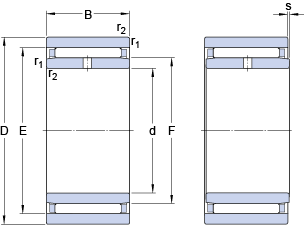

size
| d | 25 | mm | |
| D | 42 | mm | |
| B | 16 | mm | |
| E | 37 | mm | |
| F | 30 | mm | |
| r1,2 | min. | 0.3 | mm |
| s | max. | 0.8 | mm |

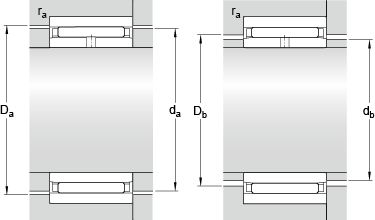

Size shoulder size
| da | 36.4 | mm | |
| db | 29.5 | mm | |
| Da | 37.5 | mm | |
| Db | 30.6 | mm | |
| ra | max. | 0.3 | mm |
data calculation
| Basic dynamic load rating | C | 22 | kN | |
| Basic rated static load | C0 | 33.5 | kN | |
| Fatigue load limit | Pu | 4 | kN | |
| Reference speed | 13000 | r/min | ||
| Maximum speed | 15000 | r/min |
weight
| Bearing weight | 0.086 | kg |
