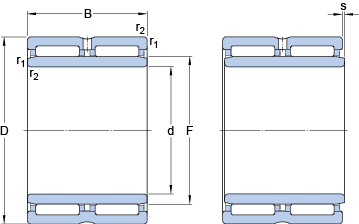

size
| d | 45 | mm | |
| D | 68 | mm | |
| B | 40 | mm | |
| F | 52 | mm | |
| r1,2 | min. | 0.6 | mm |
| s | max. | 0.5 | mm |
Size shoulder size
| da | min. | 49 | mm |
| Da | max. | 64 | mm |
| ra | max. | 0.6 | mm |
data calculation
| Basic dynamic load rating | C | 70.4 | kN | |
| Basic rated static load | C0 | 137 | kN | |
| Fatigue load limit | Pu | 17 | kN | |
| Reference speed | 7500 | r/min | ||
| Maximum speed | 8500 | r/min |
weight
| Bearing weight | 0.49 | kg |
