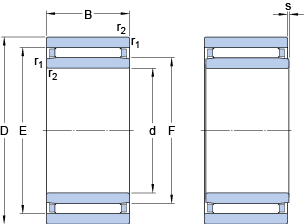

size
| d | 25 | mm | |
| D | 40 | mm | |
| B | 17 | mm | |
| E | 35 | mm | |
| F | 30 | mm | |
| r1,2 | min. | 0.3 | mm |
| s | max. | 0.8 | mm |

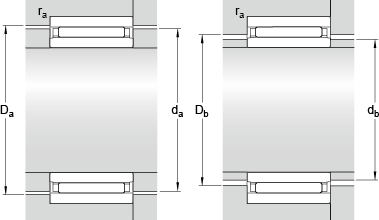

Size shoulder size
| da | 34.4 | mm | |
| db | 29.5 | mm | |
| Da | 35.5 | mm | |
| Db | 30.6 | mm | |
| ra | max. | 0.3 | mm |
data calculation
| Basic dynamic load rating | C | 18.7 | kN | |
| Basic rated static load | C0 | 34 | kN | |
| Fatigue load limit | Pu | 4.05 | kN | |
| Reference speed | 13000 | r/min | ||
| Maximum speed | 15000 | r/min |
weight
| Bearing weight | 0.088 | kg |
