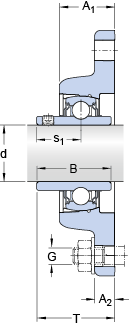

size
| d | 19.05 | mm | |
| A1 | 24.61 | mm | |
| A2 | 11.11 | mm | |
| J | 89.7 | mm | |
| H | 112 | mm | |
| L | 60.5 | mm | |
| T | 32.6 | mm | |
| N | 11.1 | mm | |
| B | 31 | mm | |
| s1 | 18.3 | mm |
data calculation
| Basic dynamic load rating | C | 12.7 | kN | |
| Basic rated static load | C0 | 6.55 | kN | |
| Maximum speed | 270 | r/min |
Calculation data
| Limiting temperature | T | max. | 350 | °C |
weight
| 轴承单元weight | 0.53 | kg |
安装信息
| 平头（固定）螺钉 | G2 | 1/4-28 UNF | ||
| 螺钉的六角扳手size | N | 3.175 | mm | |
| 推荐螺钉的拧紧力矩 | 4 | N·m | ||
Mounting information
| Attachment bolts, recommended metric size | G | 10 | mm |
