size
| d | 60 | mm | |
| D | 85 | mm | |
| B | 13 | mm | |
| d1 | 67.75 | mm | |
| d2 | 65.7 | mm | |
| D1 | 77.3 | mm | |
| b | 2.2 | mm | |
| C1 | 6.5 | mm | |
| C2 | 2.5 | mm | |
| C3 | 2 | mm | |
| r1,2 | min. | 1 | mm |
| r3,4 | min. | 0.3 | mm |
| a | 16.8 | mm |

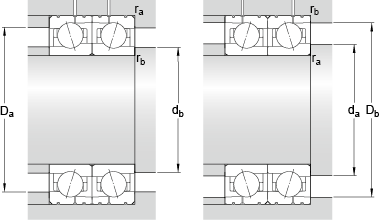

Size shoulder size
| da | min. | 64.6 | mm |
| db | min. | 62 | mm |
| Da | max. | 80.4 | mm |
| Db | max. | 83 | mm |
| ra | max. | 1 | mm |
| rb | max. | 0.3 | mm |
| dn | 69.6 | mm |
data calculation
| Basic dynamic load rating | C | 16.3 | kN | |
| Basic rated static load | C0 | 11.8 | kN | |
| Fatigue load limit | Pu | 0.5 | kN | |
| 润滑脂润滑可达转速 | 26000 | r/min | ||
| 油气润滑法可达转速 | 40000 | r/min | ||
| 球直径 | Dw | 7.938 | mm | |
| 页数 | z | 23 | ||
| 参考润滑脂量 | Gref | 2.5 | cm³ | |
| 预载荷（背对背配置，面对面配置） | ||||
| 预载荷等级 A | GA | 87 | N | |
| 轴向静刚度 | ||||
| 预载荷等级 A | 52 | N/µm | ||
| 预载荷等级 B | GB | 262 | N | |
| 预载荷等级 B | 81 | N/µm | ||
| 预载荷等级 C | GC | 523 | N | |
| 预载荷等级 C | 111 | N/µm | ||
| coefficient | f | 1.13 | ||
| coefficient | f1 | 1 | ||
| coefficient | f2A | 1 | ||
| coefficient | f2B | 1.05 | ||
| coefficient | f2C | 1.09 | ||
| coefficient | fHC | 1.01 | ||
| 当量轴承载荷coefficient | ||||
| coefficient | f0 | 8.5 | ||
weight
| Bearing weight | 0.16 | kg |
