size
| d1 | 125 | mm | |
| D | 200 | mm | |
| B | 69 | mm | |
| B1 | 83 | mm | |
| d2 | ≈ | 149 | mm |
| D1 | ≈ | 181 | mm |
| B2 | ≈ | 93 | mm |
| G | M 135x2 | ||
| G1 | 14 | mm | |
| s1 | max. | 11.4 | mm |
| s2 | max. | 4.6 | mm |
| r1,2 | min. | 2 | mm |

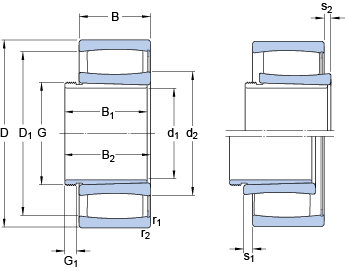

Dimensions
Value specified for B2 is approximate and before the sleeve is driven into the bearing bore.
Size shoulder size
| da | min. | 134.6 | mm |
| da | max. | 167 | mm |
| Da | max. | 190 | mm |
| ra | max. | 2 | mm |
data calculation
| Basic dynamic load rating | C | 720 | kN | |
| Basic rated static load | C0 | 1120 | kN | |
| Fatigue load limit | Pu | 112 | kN | |
| Maximum speed | 850 | r/min | ||
| 不对中系数 | k1 | 0.113 | ||
| 运行游隙系数 | k2 | 0.097 |
weight
| Bearing weight + 紧定套 | 8.9 | kg |
