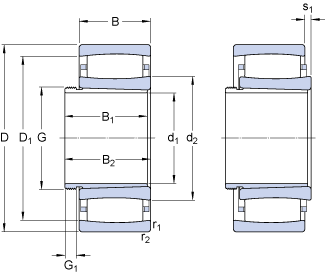

size
| d1 | 50 | mm | |
| D | 100 | mm | |
| B | 25 | mm | |
| B1 | 37 | mm | |
| d2 | ≈ | 65.8 | mm |
| D1 | ≈ | 86.7 | mm |
| B2 | ≈ | 40 | mm |
| G | M 60x2 | ||
| G1 | 7 | mm | |
| s1 | max. | 8.6 | mm |
| r1,2 | min. | 1.5 | mm |
Dimensions
Value specified for B2 is approximate and before the sleeve is driven into the bearing bore.
Size shoulder size
| da | min. | 60.6 | mm |
| da | max. | 65.8 | mm |
| Da | min. | 83.1 | mm |
| Da | max. | 91 | mm |
| Ca | min. | 0.3 | mm |
| ra | max. | 1.5 | mm |
- Ca 理论上是负值。
data calculation
| Basic dynamic load rating | C | 116 | kN | |
| Basic rated static load | C0 | 114 | kN | |
| Fatigue load limit | Pu | 13.4 | kN | |
| Reference speed | 6300 | r/min | ||
| Maximum speed | 9000 | r/min | ||
| 不对中系数 | k1 | 0.094 | ||
| 运行游隙系数 | k2 | 0.133 |
weight
| Bearing weight + 紧定套 | 0.95 | kg |
