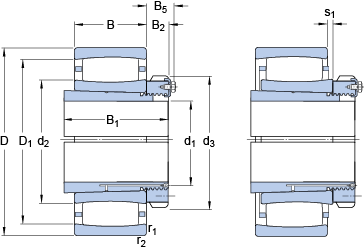

size
| d1 | 470 | mm | |
| D | 670 | mm | |
| B | 128 | mm | |
| B1 | 208 | mm | |
| d2 | ≈ | 555 | mm |
| d3 | 580 | mm | |
| D1 | ≈ | 632 | mm |
| B2 | 68 | mm | |
| B5 | 85 | mm | |
| s1 | max. | 20.4 | mm |
| r1,2 | min. | 5 | mm |
Dimensions
Size shoulder size
| da | max. | 580 | mm |
| db | min. | 516 | mm |
| Da | min. | 614 | mm |
| Da | max. | 652 | mm |
| Ba | min. | 18 | mm |
| Ca | min. | 2 | mm |
| ra | max. | 4 | mm |
- Ca 理论上是负值。
data calculation
| Basic dynamic load rating | C | 3150 | kN | |
| Basic rated static load | C0 | 6300 | kN | |
| Fatigue load limit | Pu | 430 | kN | |
| Reference speed | 700 | r/min | ||
| Maximum speed | 950 | r/min | ||
| 不对中系数 | k1 | 0.135 | ||
| 运行游隙系数 | k2 | 0.095 |
weight
| Bearing weight + 紧定套 | 195 | kg |
