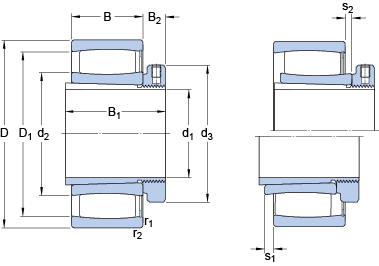

size
| d1 | 50 | mm | |
| D | 100 | mm | |
| B | 25 | mm | |
| B1 | 45 | mm | |
| d2 | ≈ | 65.8 | mm |
| d3 | 75 | mm | |
| D1 | ≈ | 86.7 | mm |
| B2 | 14 | mm | |
| s1 | max. | 8.6 | mm |
| s2 | max. | 5.4 | mm |
| r1,2 | min. | 1.5 | mm |
Dimensions
Size shoulder size
| da | max. | 80 | mm |
| db | min. | 60 | mm |
| Da | max. | 91 | mm |
| Ba | min. | 10 | mm |
| ra | max. | 1.5 | mm |
data calculation
| Basic dynamic load rating | C | 132 | kN | |
| Basic rated static load | C0 | 134 | kN | |
| Fatigue load limit | Pu | 15.6 | kN | |
| Maximum speed | 3400 | r/min | ||
| 不对中系数 | k1 | 0.094 | ||
| 运行游隙系数 | k2 | 0.133 |
weight
| Bearing weight + 紧定套 | 1.15 | kg |
