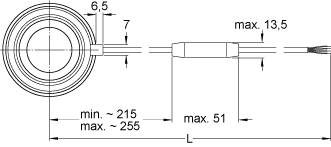

size
| d | 45 | mm | |
| D | 85 | mm | |
| B1 | 25.2 | mm | |
| B | 19 | mm | |
| d1 | ≈ | 57.6 | mm |
| d2 | 53 | mm | |
| D2 | 78.86 | mm | |
| D3 | 81.81 | mm | |
| C | 3.28 | mm | |
| b | 1.9 | mm | |
| r0 | 0.6 | mm | |
| r1,2 | min. | 1.1 | mm |
| L | 546.1 | mm | |
| ± | 10 | mm |
Dimensions
| D1 | ≈ | 75.2 | mm |
Size shoulder size
| da | min. | 51.5 | mm |
| db | min. | 51.5 | mm |
| db | max. | 52.4 | mm |
| Da | max. | 78.5 | mm |
| ra | max. | 1 | mm |
Abutment dimensions
Bore diameter of end cover ≥ D2 + 1 mm
传感器技术
| 电缆连接器类型 | Free cable end | |||
| 每圈脉冲数 | N | 80 | ||
| 周期精度 | ± | 5 | % | |
| 相位转换的输出信号 | 90 | ° | ||
| 公差相位转换的输出信号 | ± | 30 | ° | |
data calculation
| Basic dynamic load rating | C | 33.2 | kN | |
| Basic rated static load | C0 | 21.6 | kN | |
| Fatigue load limit | Pu | 0.915 | kN | |
| Maximum speed | 5000 | r/min | ||
| coefficient | kr | 0.025 | ||
| coefficient | f0 | 14 |
weight
| 传感器轴承单元weight | 0.54 | kg |
适用产品
| 止动环 | SP 85 | |||
