- Basic Parame

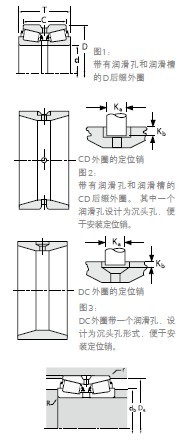

- Double outer taper roller bearings
- Series
- 3479 /3423D
- Model
- 3479
- Inner ring
- 3423D
- Outer ring
- X2S-3479
- Spacer(4)
- Size(mm)
- 36.512
- d
- 82.550
- D
- 66.678
- T
- 55.562
- B
- Rated load，N
- 169000
- Dynamic load（1）C1
- 0.37
- Dynamic load（1）e
- 1.85
- Coefficient（5）Y1
- 2.75
- Coefficient（5）Y2
- 25100
- Dynamic load（2）C90
- 15700
- Dynamic load（2）Ca90
- 43700
- Coefficient（5）C90（2）
- 1.60
- Coefficient（5）K
- Size，mm
- 0.8
- Axis maximum shoulder chamfer radius R(3)
- 45.5
- Shoulder diameterDb
- 0.8
- Bearing housing maximum shoulder chamfer radius r(3)
- 75.0
- Bearing seat shoulder diameter Da
- Pin
- Ka
- Kb
- Coefficient
- 29.9
- G1
- 11.2
- G2
- 0.0781
- Cg
- Weight
- 1.71
- kg
